Introduction
Some ShareLink rooms are equipped with MiraCast support, allowing many phones and computers to cast to them directly without the need for additional software. Simply connect to the ShareLink in your room via your device's screen mirroring settings and enter the 4-digit code shown at the bottom of the screen to cast.
Note that the 4-digit code is reset whenever a device stops casting to the ShareLink.
For ShareLink rooms without MiraCast support (such as rooms in the Library), follow the directions for Extron ShareLink Pro.
TABLE OF CONTENTS
Connecting Supported Devices
To connect to a ShareLink display:
MacOS

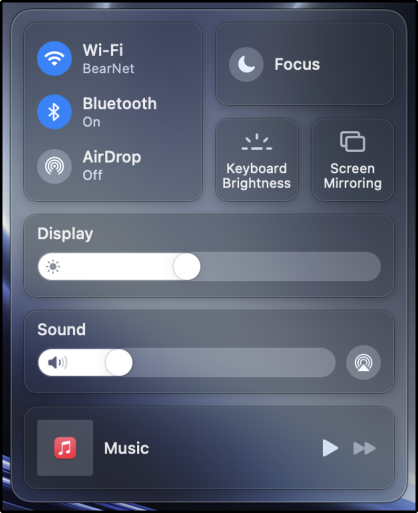

Click on the Control Center icon to pull up the menu.
Click on the tile for Screen Mirroring.

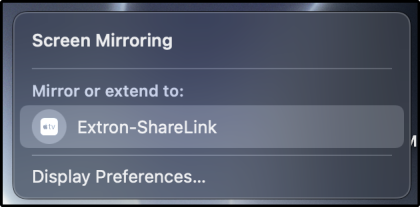

Find your room's ShareLink display in the list of castable devices.

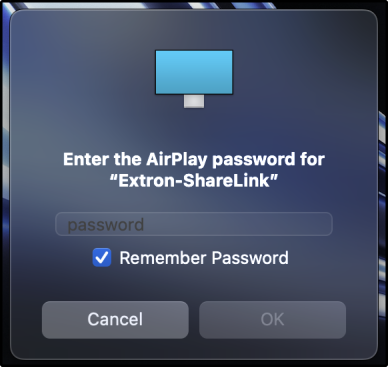

When prompted, enter the 4-digit code displayed on the ShareLink.
iOS

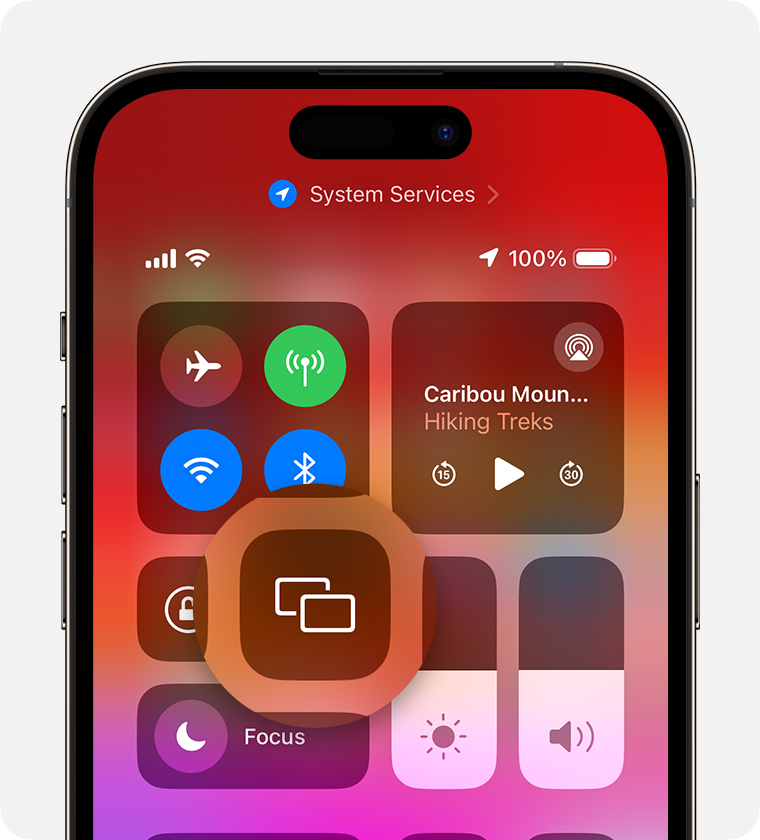

Swipe down from the top of your screen to access the Command Center.
Tap the Mirror Screen tile.

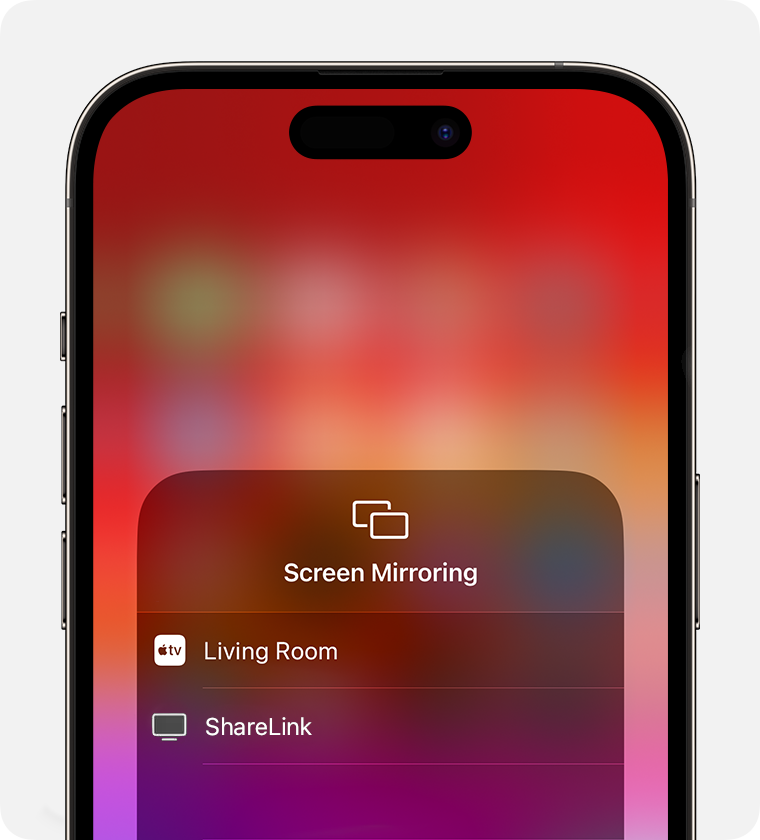

Find your room's ShareLink display in the list of castable devices.
When prompted, enter the 4-digit code displayed on the ShareLink.
Windows

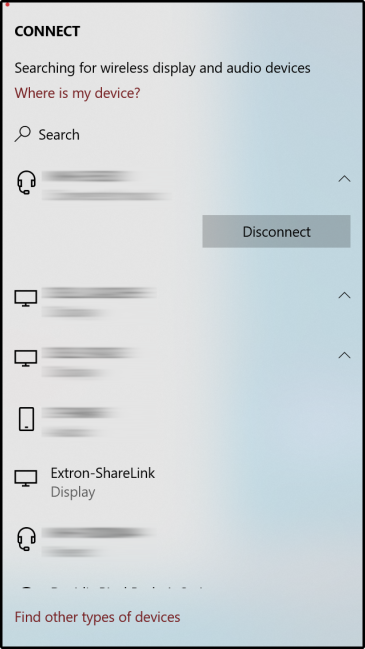

Press ⊞ + K to open the Connect menu.
Find your room's ShareLink display in the list of castable devices.
When prompted, enter the 4-digit code displayed on the ShareLink.
Troubleshooting (Windows)
If you enter the 4-digit code incorrectly or otherwise fail to connect, try connecting through Settings:
Press ⊞ + I to open the Settings window.
Click on Devices.
Click Add Bluetooth or other device.
Select Wireless display or dock.
When it appears, select the ShareLink for your room.
Enter the 4-digit code for the device.
Android and Other Devices
Not all Android devices support Miracast. The following devices and apps are capable of casting to ShareLink displays:
| Manufacturer | Casting App |
| Samsung | Smart View |
| LG | Smart Share |
| Sony | Screen Mirroring |
| Miracast not currently supported |
From any of the above apps, look for the SharePoint device in the list of castable displays and enter the 4-digit code when prompted.
